Trench Boxes

Backhoe Box

Our backhoe boxes are available in a range of options from backhoe trench boxes to backhoe manhole boxes.

backhoe trench box
backhoe trench box

Features

Backhoe options for trench and manhole boxes
Available in 3 sizes
Box weights from 900kg
Top extensions available
Load capacity of 20kN/m2

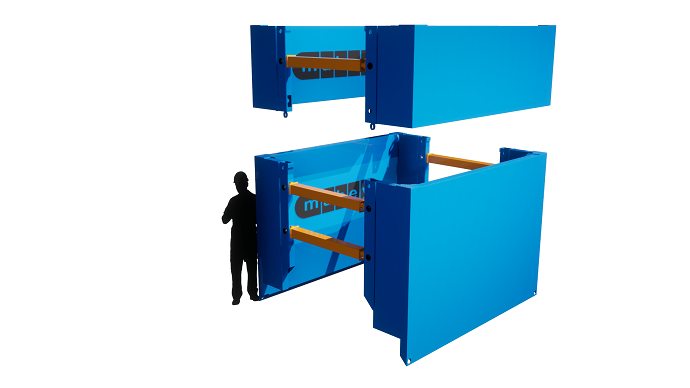

Our Backhoe Boxes

Ideal for use on construction sites and projects where ground movement is non-critical. Their lightweight nature makes them the perfect solution for use with smaller 180º backhoe rubber tyred excavators.

With our smallest backhoe box weighing less than 900kg, these solutions are ideal where limited lifting capacity exists on site.


Resources

View or download here

    • Box name

      System 20 Backhoe Box

      Size length x height (m)

      2.84 x 2

      Capacity (kN/m2)

      20

      Max trench depth (m)

      2.9

      Min & Max trench widths (m)

      0.73-2.33

      Under strut clearance (m)

      1.2

      Length between struts (m)

      2.66

      Box weight * (kg)

      886-1399

      Extension available

      Yes

      End closure panels available^

      Yes

      Max ring size

      N/A

      *Box weight is dependent on which struts are used

      ^Maximum end closure panel use is 2.8m box width

    • Box name

      System 20 Backhoe Manhole Box

      Size length x height (m)

      2.5 x 2

      Capacity (kN/m2)

      20

      Max trench depth (m)

      2.9

      Min & Max trench widths (m)

      2.44

      Under strut clearance (m)

      1.2

      Length between struts (m)

      2.25

      Box weight * (kg)

      1004-1560

      Extension available

      1m

      End closure panels available^

      Yes

      Max ring size

      1350mm

      *Box weight is dependent on which struts are used

      ^Maximum end closure panel use is 2.8m box width

    • Box name

      System 20 Backhoe Manhole Box

      Size length x height (m)

      3 x 2

      Capacity (kN/m2)

      20

      Max trench depth (m)

      2.9

      Min & Max trench widths (m)

      2.94

      Under strut clearance (m)

      1.2

      Length between struts (m)

      2.75

      Box weight * (kg)

      1100-1714

      Extension available

      1m

      End closure panels available^

      Yes

      Max ring size

      1800mm

      *Box weight is dependent on which struts are used

      ^Maximum end closure panel use is 2.8m box width
